DETAILED PRODUCTS OF FREIGHT ELEVATOR

FREIGHT ELEVATOR FOR USE FOR MAJOR NEEDS?

  • Freight Elevator in the factory (industrial elevator, elevator manufacturers)
  • Freght Elevator car transporters, motorcycles
  • Garage elevator for apartment, building
  • Food elevator
  • Construction lifts: for cargo handling, workers in buildings

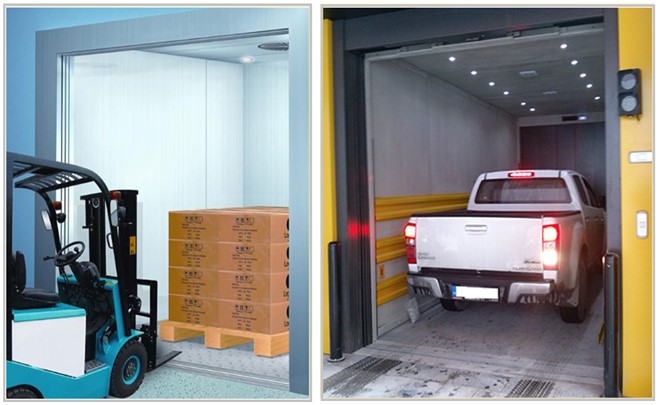

(Freight Elevator use in factories, warehouses, garages, ports, buildings, food transportation…)

PRINCIPLES OF OPERATION

1. Tractor loading lifts

  • Using tractors with large capacity to operate, the load can range from 50 Kg to 8,000 Kg.
  • Machine layout and electrical cabinets in two types: machine room or machine roomless depending on the area or customer requirements.
  • Doors: open wide up to 6m, operating under the mechanism of horizontal or vertical slide.
  • Microprocessor controller with many advanced features, able to identify floor call, close, quick lock.
  • VVVF frequency converter system, this product can save energy efficiency. At the same time it increases the capacity and extends the life of the product. In particular, is the stability of the operation.

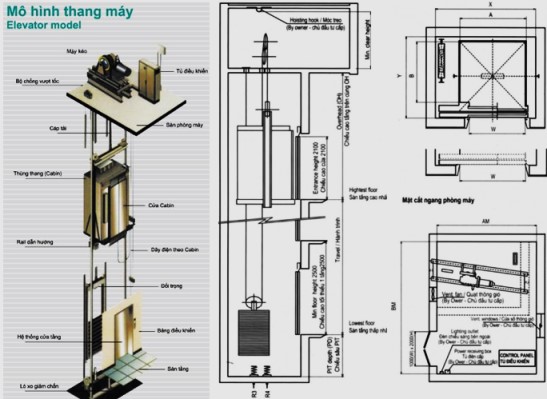

(Tractor loading lifts – principles of operation)

2. Hydraulic freight lifts

Hydraulic loading lifts use hydraulic pistons to lift or lower the cabin. However, to increase the tonnage of large cargo, this system requires a lot of time to build and take up a large area for Pit pit as well as related items.

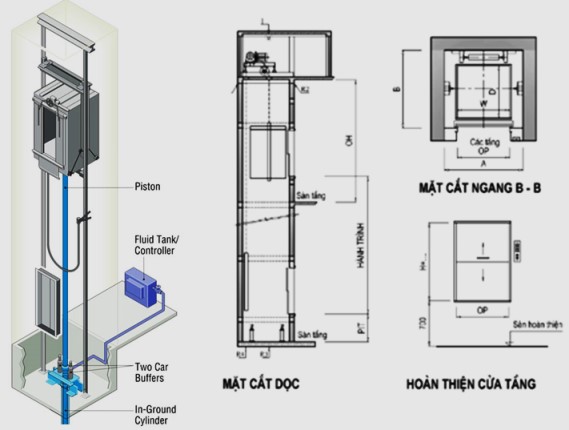

(Hydraulic freight lifts – Principles of operation)

TECHNICAL SPECIFICATIONS TYPE OF DAIPHONG FREIGHT LIFT

1. Cargo ladder lifts (50Kg – 500Kg)

TABLE OF TECHNICAL SPECIFICATIONS SMALL ELEVATOR (ONLY FOR GOODS NOT FOR PASSENGER)
(The table is for reference, the parameters may vary according to customer requirements within the technical standards allowed)

Parameters and dimensions of small freight lifts
Load  (Kg) Open door  Cabin size Hoist size Machine room size
50 – 100 600 × 800 800 x 800 x 1000 mm 1000 x 1000 mm Machine roomless
100 – 200 800 × 800 1500 x 1200 mm 1200 x 1000 x 1000 Machine roomless
200 – 300 800 × 1200 1500 x 1200 mm 1200 x 1000 x 1000 Machine roomless
300 – 500 800 × 1600 2100 x 2200 1600 x 2000 x 1800 Machine roomless

Note:

  • Engine and Control Panel: Nippon of Japan, Wurttemberg of Germany, Gem and Montanari of Italia
  • Engine used: 50 – 100 kg (1.5KW), 100 – 300Kg (2.2KW), 300-500 Kg (3.7 KW)
  • Standard speed: 30 m – 45 m / min
  • Cabinet material: stainless steel 201 thickness 0.8 mm
  • Ray: Ray T50 elevator
  • There are lights show cabin up and down, digital indicator light
  • Control system: Relay AC1
  • Inverters: ABB, Hyundai, INVT, Controtechniques, Fuji …

Dai Phong can produce all kinds of cargo lifts according to individual requirements: weight, opening, size of cabin, size of machine room according to general technical requirements.

Parameters and dimensions of small freight lifts
Load (Kg) Open door  Cabin size Hoist size Machine room size
50 – 100 600 × 800 800 x 800 x 1000 mm 1000 x 1000 mm Machine roomless
100 – 200 800 × 800 1500 x 1200 mm 1200 x 1000 x 1000 Machine roomless
200 – 300 800 × 1200 1500 x 1200 mm 1200 x 1000 x 1000 Machine roomless
300 – 500 800 × 1600 2100 x 2200 1600 x 2000 x 1800 Machine roomless

2. Frieght elevator (1 ton – 2 tons)

Widely used in: Factory, construction works, car transport, transportation in warehouses, transportation of goods in the hospital.

TABLE OF TECHNICAL SPECIFICATIONS
(The table is for reference, the parameters may vary according to customer requirements within the technical standards allowed)

Parameters and dimensions of meddium  freight lifts
Load (Kg) Door open Cabin size Hoist size Machine room size
500 1000 × 2100 1250 × 1250 × 2100 2200 × 2000 2200 × 2000
1000 1100 × 2100 1600 × 1500 × 2300 2400 × 2000 2400 × 2000
1500 1300 × 2100 1800 × 1900 × 2350 2600 × 2500 2600 × 2500
2000 1600 × 2100 1900 × 2200 × 2350 2850 × 2900 900

Note:

  • Engine and Control Panel: Nippon of Japan, Wurttemberg of Germany, Gem and Montanari of Italia
  • Standard speed: 30 m – 45 m / min
  • pit : 1,500 mm
  • Over head : 4200 mm
  • Dimensions apply in the case of side counterweight

Dai Phong can produce all kinds of cargo lifts according to individual requirements: weight, opening, size of cabin, size of machine room according to general technical requirements.

Load (Kg) jet
R1 R2 R3 R4
500 3000 2500 4000 3200
1000 5500 4300 8500 6800
1500 10200 6600 9000 9000
2000 13000 7200 11200 4000

3. Large cargo lifts (2 tons – 8 tons)

Widely used in factories manufacturing mechanical products, producing or distributing automobiles, transporting building materials in buildings …

TABLE TECHNICAL SPECIFICATIONS LARGE LOADER
(This table is for reference only, the specifications may vary according to customer requirements within the specification)

Parameters and dimensions of big freight lifts
load (Kg) Door open Cabin size Hoist size Machine room size
2500 1800 × 2100 2000 × 2500 × 2350 3050 × 3100 3050 × 3100
3000 2000 × 2100 2200 × 2600 × 2350 3250 × 3600 3250 × 3600
3500 2200 × 2100 2300 × 2800 × 2350 3400 × 3700 3400 × 3700
4000 2200 × 2100 2300 × 3100 × 2350 3400 × 4000 3400 × 4000
5000 – 6000 2400 × 2100 2500 × 3500 × 2350 3700 × 4200 3700 × 4200

Note:

  • Engine and Control Panel: Nippon of Japan, Wurttemberg of Germany, Gem and Montanari of Italia
  • Standard speed: 30 m – 45 m / min
  • PIT : 1,500 mm
  • Over head : 4200 mm
  • Dimensions apply in the case of side counterweight

Dai Phong can produce all kinds of cargo lifts according to individual requirements: weight, opening, size of cabin, size of machine room according to general technical requirements.

TABLE OF FEASIBILITY BY LOUNGE

Load (kg)  Yet
R1 R2 R3 R4
2500 15000 7600 18000 15000
3000 18000 9000 24000 18000
3500 19000 9500 27000 18500
4000 20000 10000 28000 19000
4500 21000 11000 38000 28000
5000 22000 12000 40000 29000
6000 23000 13000 40000 29000

HOW IS DAI PHONG QUALITY

1. New engines and control cabinets is imported complete units of the famous Nippon companies of Japan, Wurttemberg of Germany, Gem and Montanari of Italy.

  • Stable operation in the long run, no mistakes
  • Safety, operation and use
  • Save power consumption
  • Many convenient user-friendly features

2. Cabin is processed in Dai Phong Elevator factory with ISO 9001 – 2014, modern CNC machine system, 100% imported materials from Korea with CFS

  • Cabin lifts are reliable and durable for over 25 years
  • High safe
  • High aesthetics

3. Team of elevator engineers team of many years experience installing lifts loading goods

  • 2 mechanical masters, 8 mechanical engineers and over 50 technical staffs
  • Constructing elevator for large projects of Samsung, Samsung, Vingroup, Continental, Vinamilk, Trung Nguyen, Kumho Tire, showrooms Vietnam Vietnam, Honda Vietnam …

4. Large production capacity and diversified production capacity according to customers’ requirements

  • 3 factories in North, Central and South of Dai Phong Elevator have the second largest production capacity in Southeast Asia.
  • With modern technology and machinery and experienced engineers, we can produce different types of elevator loading goods according to different requirements of customers.

HOW MUCH FOR FREIGHT LIFT?

With 3 modern Factory with large production capacity, imported parts in huge quantity, traditional partners Nippon of Japan, Wurttemberg of Germany, Gem and Montanari of Italy. Dai Phong is committed to be the elevator supplier of goods with the best prices in Vietnam market.

The price of elevator varies from 100 million to 800 million depending on: elevator type with machine room or machine roomless, weight, number of floors.

QUOTE OF ELEVATOR

This quotation is for reference only, depending on the design: Engine brand, load, stop number, features required … that Dai Phong will quote accurate and cost effective for customer

load Price for all  (million vnd)
Freight lift use machine Hydrolic freight lift
machine: Nippon of Japan, Wurttemberg of Germany, Gem and Montanari of Italy
100 kg – 500 kg 100 – 200
1000 kg – 2000 kg 200 – 500
2500 kg – 6000 kg 500 – 1000
The price list is not 100% excactly, depending on specific requirements. Dai Phong Elevator will send detailed quotations according to the design meet the needs of customers.

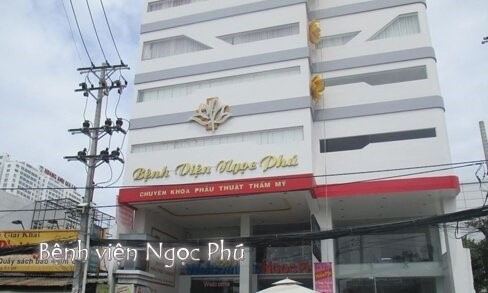

SOME OF BIG PROJECT OF DAI PHONG
